记录一个Google官方BottomNavigationView组件+Fragments的布局。

新建带有BottomNavigationView的Activity

首先，新建一个带有BottomNavigationView的Activity，这里可以新建一个空白的Activity然后在布局文件中添加BottomNavigationView，也可以直接新建一个Bottom BottomNavigation Activity，这样就自动给添加好了.布局文件activity_main.xml如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/container"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <FrameLayout
        android:id="@+id/content"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1">
    </FrameLayout>

    <android.support.design.widget.BottomNavigationView
        android:id="@+id/navigation"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom"
        android:background="?android:attr/windowBackground"
        app:menu="@menu/navigation" />
</LinearLayout>

BottomNavigationView中的三个图文按钮写在res/menu下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:id="@+id/navigation_home"
        android:icon="@drawable/ic_home"
        android:title="Home" />
    <item
        android:id="@+id/navigation_favourite"
        android:icon="@drawable/ic_favorite"
        android:title="Favourite" />
    <item
        android:id="@+id/navigation_profile"
        android:icon="@drawable/ic_person"
        android:title="Profile" />
</menu>

这里可能会因为com.android.support:design包的版本问题会让APP挂掉，此次demo中的build.gradle部分配置如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
//这里只展示部分配置
android {
    compileSdkVersion 25
    buildToolsVersion "26.0.1"

    defaultConfig {
        minSdkVersion 15
        targetSdkVersion 25
      }
}

  dependencies {
    compile 'com.android.support:appcompat-v7:25.3.1'
    compile 'com.android.support:design:25.3.1'
    compile 'com.android.support:support-vector-drawable:25.3.1'
}

效果如下：

其中图文按钮的点亮状态的颜色是当前Activity主题配置文件中的

1
<item name="colorPrimary">@color/themecolor</item>

新建Fragment

新建三个Fragment：HomeFragment、FavouriteFragment、ProfileFragment，以及对应的布局文件fragment_home.xml、fragment_favourite.xml、fragment_profile.xml.

新建的Fragment中要注意的问题是在onCreateView中inflate布局文件时，要写成：

1
View view = inflater.inflate(R.layout.fragment_home, container, false);

或者

1
View view = inflater.inflate(R.layout.fragment_home, null);

不能写成

1
View view = inflater.inflate(R.layout.fragment_home, container);

否则会报错：

1
java.lang.IllegalStateException: The specified child already has a parent. You must call removeView() on the child's parent first.

具体原因可参考这里.

三个Fragment的布局文件都是简单的一个居中的TextView，分别显示Home、Favorite、Profile以示区别.

联动BottomNavigationView

接下来就是在MainActivity中写相关的联动逻辑了

选择显示哪一个Fragment，其他的隐藏：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
//显示
private void showFragment(int index) {
    FragmentManager fragmentManager = getSupportFragmentManager();
    FragmentTransaction transaction = fragmentManager.beginTransaction();
    hideFragment(transaction);
    switch (index) {
        case FRAGMENT_HOME:
            if (mFragmentHome == null) {
                mFragmentHome = new HomeFragment();
                transaction.add(R.id.content, mFragmentHome);
            } else {
                transaction.show(mFragmentHome);
            }
            break;
        case FRAGMENT_FAVOURITE:
            if (mFragmentFavourite == null) {
                mFragmentFavourite = new FavouriteFragment();
                transaction.add(R.id.content, mFragmentFavourite);
            } else {
                transaction.show(mFragmentFavourite);
            }
            break;
        case FRAGMENT_PROFILE:
            if (mFragmentProfile == null) {
                mFragmentProfile = new ProfileFragment();
                transaction.add(R.id.content, mFragmentProfile);
            } else {
                transaction.show(mFragmentProfile);

            }
            break;
    }
    transaction.commit();
}

//隐藏
private void hideFragment(FragmentTransaction transaction) {
    if (mFragmentHome != null) {
        transaction.hide(mFragmentHome);
    }
    if (mFragmentFavourite != null) {
        transaction.hide(mFragmentFavourite);
    }
    if (mFragmentProfile != null) {
        transaction.hide(mFragmentProfile);
    }
}

最后在OnNavigationItemSelectedListener中写点击对应item时联动Fragment的逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

private BottomNavigationView.OnNavigationItemSelectedListener mOnNavigationItemSelectedListener
        = new BottomNavigationView.OnNavigationItemSelectedListener() {

    @Override
    public boolean onNavigationItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()) {
            case R.id.navigation_home:
                showFragment(FRAGMENT_HOME);
                return true;
            case R.id.navigation_favourite:
                showFragment(FRAGMENT_FAVOURITE);
                return true;
            case R.id.navigation_profile:
                showFragment(FRAGMENT_PROFILE);
                return true;
        }
        return false;
    }

};

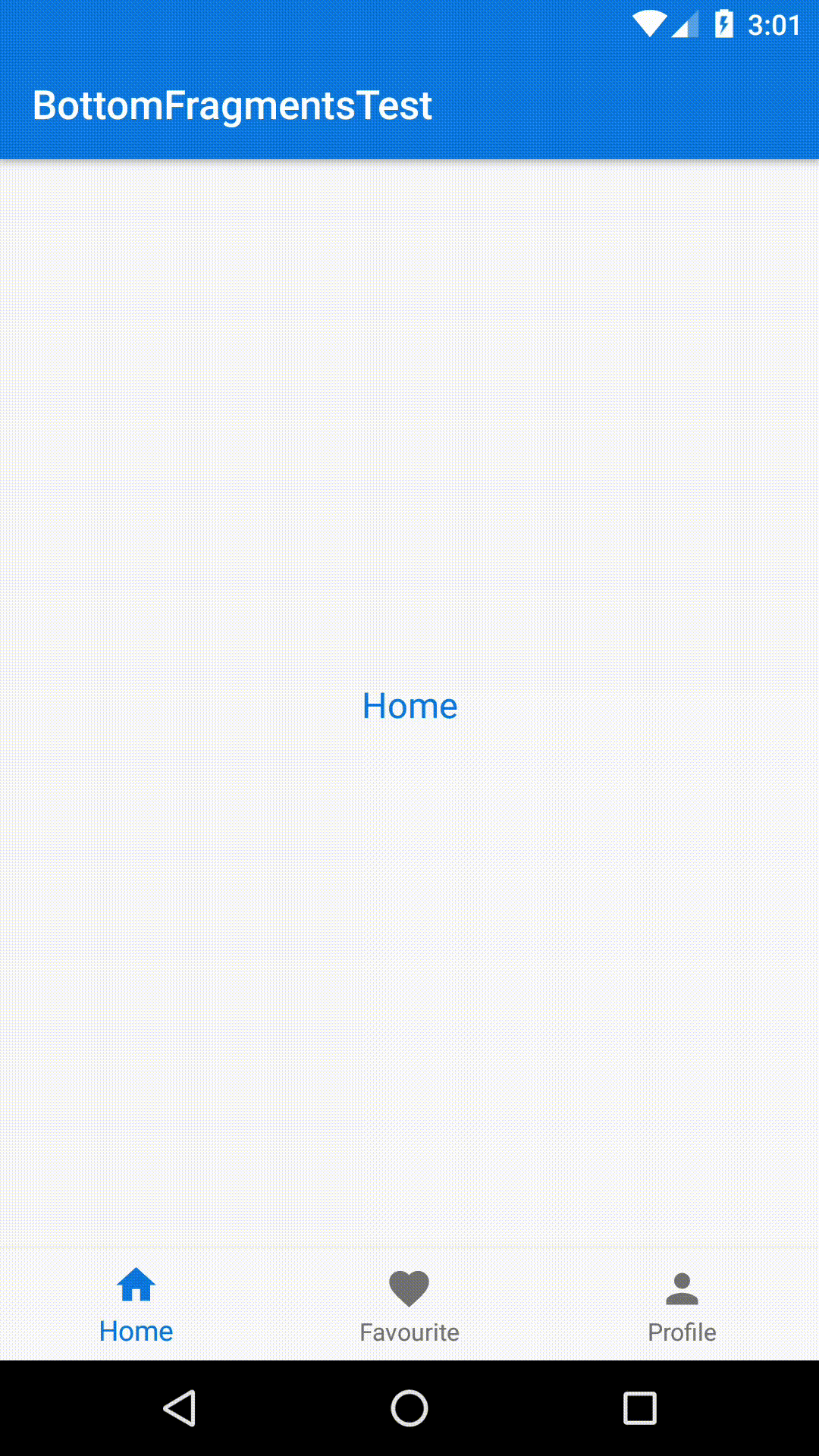

小功告成，最终效果如下：

MainActivity.java完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
import android.os.Bundle;
import android.support.annotation.NonNull;
import android.support.design.widget.BottomNavigationView;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentTransaction;
import android.support.v7.app.AppCompatActivity;
import android.view.MenuItem;

public class MainActivity extends AppCompatActivity {
    private static final int FRAGMENT_HOME = 0;
    private static final int FRAGMENT_FAVOURITE = 1;
    private static final int FRAGMENT_PROFILE = 2;

    private Fragment mFragmentHome;
    private Fragment mFragmentFavourite;
    private Fragment mFragmentProfile;
    private BottomNavigationView.OnNavigationItemSelectedListener mOnNavigationItemSelectedListener
            = new BottomNavigationView.OnNavigationItemSelectedListener() {

        @Override
        public boolean onNavigationItemSelected(@NonNull MenuItem item) {
            switch (item.getItemId()) {
                case R.id.navigation_home:
                    showFragment(FRAGMENT_HOME);
                    return true;
                case R.id.navigation_favourite:
                    showFragment(FRAGMENT_FAVOURITE);
                    return true;
                case R.id.navigation_profile:
                    showFragment(FRAGMENT_PROFILE);
                    return true;
            }
            return false;
        }

    };

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        BottomNavigationView navigation = (BottomNavigationView) findViewById(R.id.navigation);
        navigation.setOnNavigationItemSelectedListener(mOnNavigationItemSelectedListener);
        //默认显示HomeFragment
        showFragment(FRAGMENT_HOME);
    }

    private void showFragment(int index) {
        FragmentManager fragmentManager = getSupportFragmentManager();
        FragmentTransaction transaction = fragmentManager.beginTransaction();
        hideFragment(transaction);
        switch (index) {
            case FRAGMENT_HOME:
                if (mFragmentHome == null) {
                    mFragmentHome = new HomeFragment();
                    transaction.add(R.id.content, mFragmentHome);
                } else {
                    transaction.show(mFragmentHome);
                }
                break;
            case FRAGMENT_FAVOURITE:
                if (mFragmentFavourite == null) {
                    mFragmentFavourite = new FavouriteFragment();
                    transaction.add(R.id.content, mFragmentFavourite);
                } else {
                    transaction.show(mFragmentFavourite);
                }
                break;
            case FRAGMENT_PROFILE:
                if (mFragmentProfile == null) {
                    mFragmentProfile = new ProfileFragment();
                    transaction.add(R.id.content, mFragmentProfile);
                } else {
                    transaction.show(mFragmentProfile);

                }
                break;
        }
        transaction.commit();
    }

    private void hideFragment(FragmentTransaction transaction) {
        if (mFragmentHome != null) {
            transaction.hide(mFragmentHome);
        }
        if (mFragmentFavourite != null) {
            transaction.hide(mFragmentFavourite);
        }
        if (mFragmentProfile != null) {
            transaction.hide(mFragmentProfile);
        }
    }
}

HomeFragment.java完整代码如下，其余类似：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

/**
 * Created by lcgao on 2017/12/27.
 */

public class HomeFragment extends Fragment {
    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_home, container, false);
        return view;
    }

}
